Alutruss QUADLOCK end plate QQGP ( ) ✔ High Quality Construction ✔ Award-Winning Product Design 🛒 Lås din eksklusive rabat op

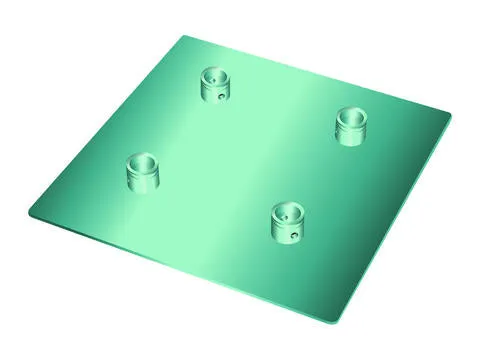

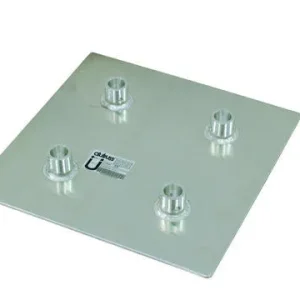

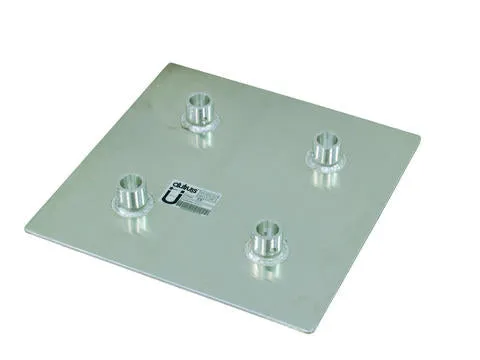

Alutruss ende plade for QUADLOCK truss system, benyttes hvis truss skal placeres på gulv så det ikke ødelægger overfladen.Specifikationer for Alutruss QUADLOCK 6082:
- Max. System length: 12 meter
- Holdbar EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Easy installation
- Low weight
- Distance center – center: 240 mm
- For exhibition and shop installers, discotheque and theatre installations
- Main chords: 50 x 2 mm
- Braces: 16 x 2 mm
- Alloy: EN-AW 6082 T6 (AlMgSi1 T6)
- Welding material: AlMg 5
- Welding technique: TIG-welding
- Outer dimensions: 290mm x 290mm
| Load table QUADLOCK 6082 | ||
| Span (m) | Point load (kg) | UDL (kg/m) |
| 1 | 1500 | 1500 |
| 2 | 1500 | 773 |
| 2,5 |
